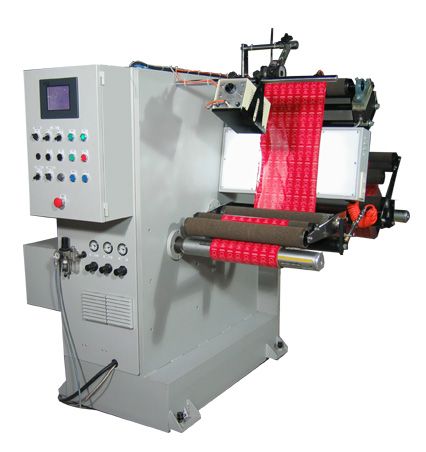

DOCTOR & RE-REELING MACHINE
| DR - 500 Series ( 2 WAY WINDER DIRECTION ) |
| Materials |
: Printing Roll / Rewind Roll |
| Web Width |
: 300 / 500 mm. |
| Machine Speed |
: 300 M./Min. (Max) |
| Unwind Diameter |
: 600 mm. |
| Rewind Diameter |
: 600 mm. |
| Unwind Unit |
: Air Shaft |
| Inspector Printing |
: By Stroboscope |
| Tension Control |
: Auto Tension Control |
| Trim Slitting Unit |
: Razor Blade |
| Operation System |
: By PLC and Touch Screen Monitor |
|
